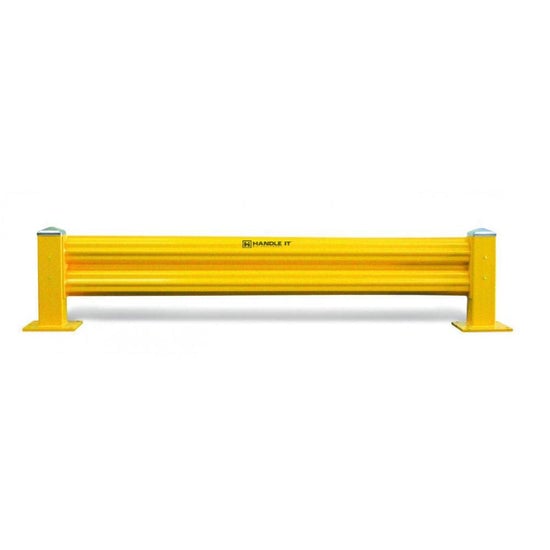

Heavy Duty Warehouse Guard Rail Beam

Heavy Duty Warehouse Guard Rail Beam

Consists of 1 – rail (length selected)

$53.00 – $180.00

SKU N/A Categories ,

Drawings

Description

Rail Information

  • The standard 12” high rail is welded to two plates on each side.
  • Each plate has two pre-punched holes for connection.
  • Secured to the post using 4 bolts per rail (12 mm (1/2’’) D x 30 mm (1 3/16’’)).
  • Mounted between the inside faces of the posts.
  • When properly installed, rated to withstand a 10,000 lb. impact at 4 mph
Material Height Thickness Finish Bolts
ASTM A1011 Corrugated Steel 12” 13-GA (5/64”) Powder-coated Safety Yellow 4 bolts (12 mm x 30 mm)



Rail Length & Weight

Nominal Length Exact Length Weight
2′-0″ 1′-7″ 14 lbs
3′-0″ 2′-7″ 19 lbs
4′-0″ 3′-7″ 23.5 lbs
5′-0″ 4′-7″ 28.5 lbs
6′-0″ 5′-7″ 33 lbs
7′-0″ 6′-7″ 38 lbs
8′-0″ 7′-7″ 42.5 lbs
9′-0″ 8′-7″ 47.5 lbs
10′-0″ 9′-7″ 52 lbs

Note: Nominal length is measured center to center of posts.

Hardware Kit Information (excluded):

  • Rail only. Hardware is included with post kits, starter kits & add on kits

Additional information

Weight N/A
Shipping Dimensions N/A
Length

2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 8ft, 9ft, 10ft
