Heavy Duty Double Height Post Kit

Heavy Duty Double Height Post Kit

Consists of 1 – 44″H posts, hardware, and floor anchors.

$152.00

SKU N/A Category

Drawings

Description

Post Information:

  • 44″ double high post
  • Supports 2 panel rails
  • Made from 4.75″ x 4.75″ x 1/4″ thick steel

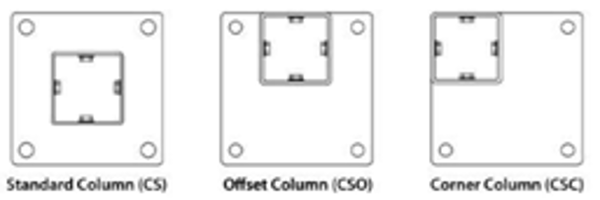

  • Posts come in Centred (Standard ), Offset or Corner configurations.
  • Each post is welded to a 10” x 10” x 5/8” thick base plate
  • Posts are anchored to concrete using (4x) ¾” x 4 ½” wedge anchors
  • Powder-coated safety yellow
  • When properly installed, rated to withstand a 10,000 lb. impact at 4 mph
  • Weight 51lbs (includes hardware kit)

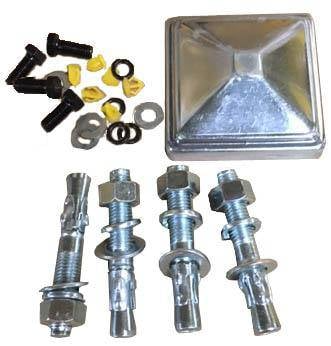

Hardware Kit Information (included):

  • Post to concrete connection.
    • (4x) 3/4″ x 4-1/4″ (19.1mm x 108mm) grade 8.8 wedge anchors
  • Post to rail connection.
    • (8x) M12 x 1.75-35mm hex head bolt. Grade 8.8
    • (8x) M12 lock washer. Grade 8.8
    • (8x) M12 Flat washer. Grade 8.8
    • (8x) M12 hole plugs
  • Post Cap
    • (1x) Steel post cap

Additional information

Weight N/A
Shipping Dimensions N/A
Post Type

Centred, Corner, Off Centred
